全球高端旋轉閥

　　Material: Lithium ion ternary positive electrode, requiring the rotary valve to support quick disassembly and cleaning of the sliding rod, completely prohibiting copper and zinc, and material contact with ceramic materials. Valves require extremely high sealing performance, with dust leakage not exceeding 0.01mg/m 3 and a production capacity of 2-3t/h.

　　Materials: Graphite, 304 and lined ceramic, with a specific gravity of 0.3-1.2g/cm 3, DN200. flow rate requirement: ≥ 3t/h, material SUS304. copper and zinc prohibited, sliding rod rotary valve, detachable and washable, airtight sealing requirement.

　　Materials: white sugar powder and brown sugar, food grade 304 stainless steel, sliding rod rotary valve with a diameter of 300. Used for positive pressure conveying, airtight seal, to be cleaned, with a discharge capacity of 1.5T/h.

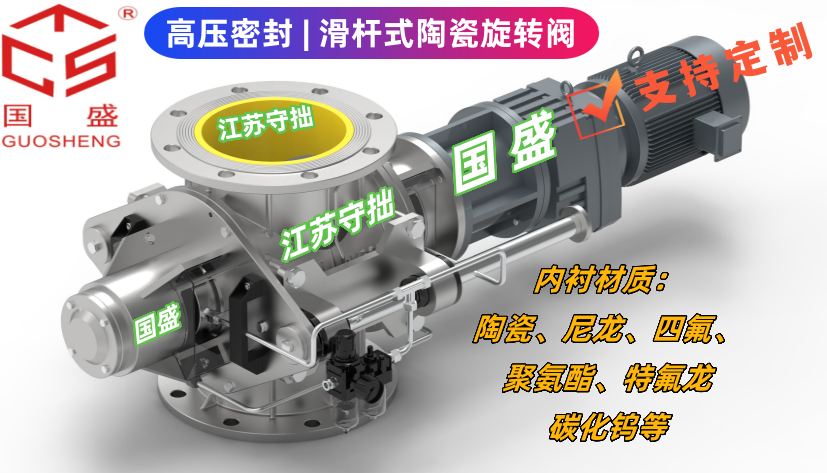

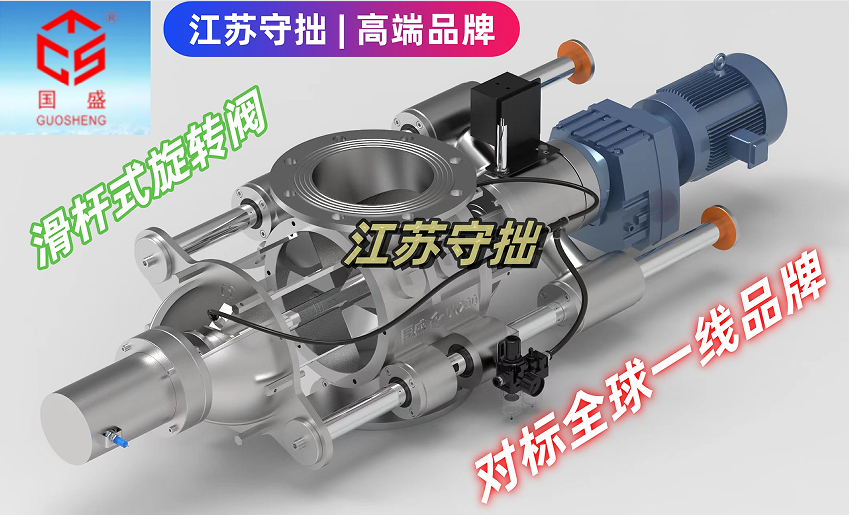

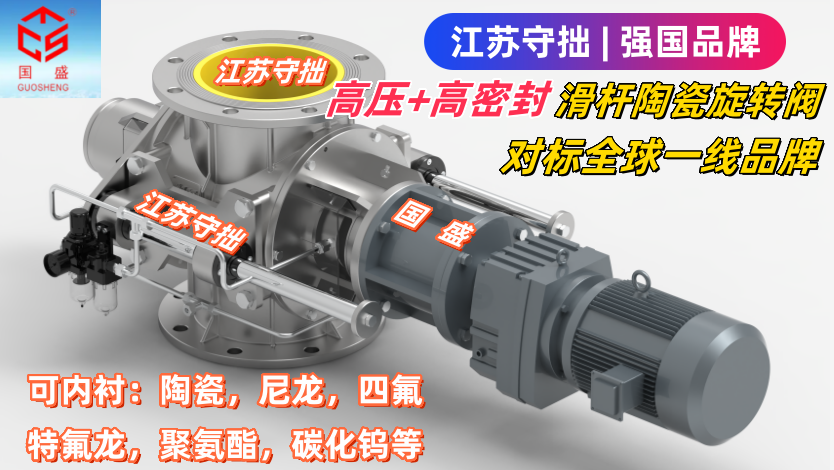

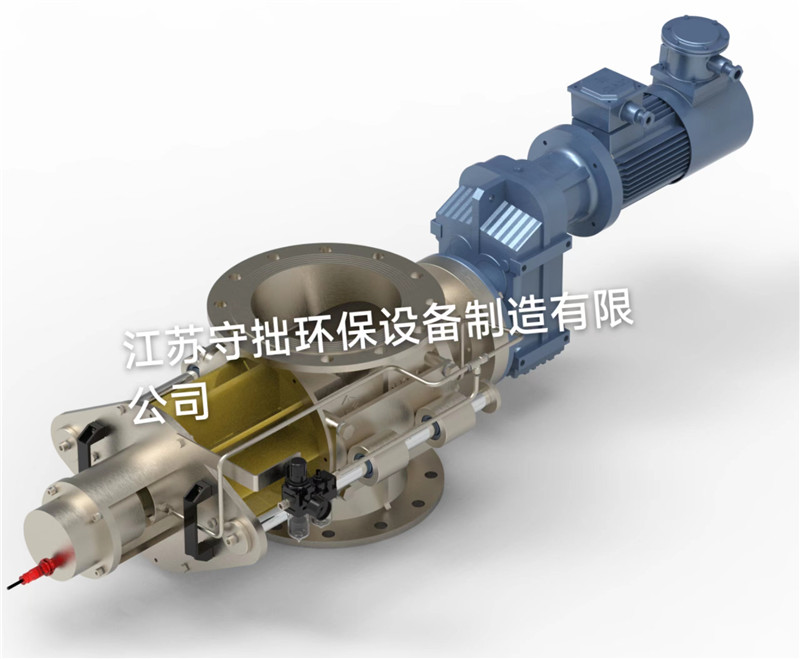

　　滑桿式旋轉閥：

　　主要結構：外殼金屬;物料接觸部分：可內襯陶瓷、尼龍、四氟、特氟龍、鈦合金、鋁合金、不銹鋼。

　　主要用于輸送鋰電池正極材料、磷酸鐵鋰、三元材料、化工、制藥、食品原料等。

　　特點：物料粘接設備，可以快速清理，快速?gòu)?fù)位。

　　穩定性優于其他快拆式閥門，可原地抽出轉子。

       本產品可完全對標國外品牌的滑桿清洗型。

　　江蘇守拙主要定制高端旋轉閥：超級工程/重大項目/科研項目定制旋轉閥。【電話/微信咨詢：陳經理18068546632】

　　部分選用滑桿式旋轉閥案例：

　　物料：鋰電三元正極，要求旋轉閥支持滑桿快拆清理，全面禁銅鋅，物料接觸陶瓷材質。閥門對密封性要求極高，粉塵泄漏量不大于0.01mg/m3，產能2~3t/h。

　　物料：石墨，304和內襯陶瓷，物料堆積比重0.3~1.2g/㎝3，DN200.流量要求：≥3t/h，材質SUS304.禁銅禁鋅，滑桿式旋轉閥，可拆卸可清洗，氣密封要求。

　　物料：白糖粉和紅糖，食品級304不銹鋼，滑桿旋轉閥口徑300.正壓輸送用，氣密封，要清洗型，卸料量1.5T/h。

　　卸料關風機：物料是淀粉，4-5m3/h，滑桿式清洗型關風機，電機粉塵氣體復合型防爆，內外拋光304.氣密封GSB-10/DN250.N=1.5kW，ExdIIBT4/ExtIIIBT130℃防護級別:IP65法蘭:PL250(B)-10.

　　食品級旋轉下料閥(快拆易清洗旋轉閥)，尺寸DN200.物料接觸部分材質為食用級SUS304.變頻電機，粉塵防爆 ，物料名稱：麥芽糖醇，顆粒物，40℃，物料含水 <1%，物料粒度 10目，堆積密度(g/cm3) 0.8.

　　便攜式旋轉下料閥(滑動桿旋轉閥接口DN200)2噸/小時，常溫糖粉，0.5毫米顆粒狀，拋光0.6-0.8.附加條件：整機304材質，粉塵防爆，電機二級能效。

　　輸送物料：顆粒食用鹽，輸送量 5T/h，滑桿快拆式，材質304不銹鋼，法蘭標準GB，SEW減速機;正壓風力輸送使用;輸送設計壓力：50Kpa。

　　鎖風快拆式：輸送能力>7.5t/h，變頻可調，輸送物料為電石粉塵，入料側(閥上)壓力為正壓(20kPa)，排料側(閥下)為常壓，鎖風閥軸封處配備氮?dú)饷芊庋b置，不得向外漏氣漏粉塵，氮?dú)鈮毫?.2MPa，鎖風閥應為快拆結構，便于在內部卡料時打開側蓋，取出轉子閥板進行清理;電動機與減速機采用直連傳動，減速機與閥軸采用直連傳動;電動機電壓380V，防爆等級需滿足ExdIICT4和ExdIIIBT130℃，防護等級IP55.絕緣等級F級，二級能效。

　　滑杄式卸料器，304材質，產量: 1.2噸/小時，法蘭進/出尺寸：內徑320毫米，外徑450毫米(12個孔)來自氣旋的粉類產品分割器。

　　物料：聚合物顆粒，粒徑≤18目，含水分，可能會結塊，材質316L，投料口直徑≤15cm，輸送流量0-40kg/min，流量精度0.5kg/min，附著料如何清洗，耐腐蝕，變頻電機，可調轉速，物料潔凈度要求較高，輸送過程中不能引入其他雜質。

　　滑桿清洗型旋轉卸料閥(拉桿快拆)，配備功率1.5KW,材質304.轉速24r/min,每轉體積4.8L,輸送量1600kg/h,配備減速機為SEW,密封方式氣密封，電機與減速機方式為齒輪連接。符合食品安全要求(衛生級，無死角)。物料介質:酵母細粉，介質密度500-600kg/m3.L=340mm。

　　旋轉閥，葉輪聚四氟乙烯的材質，滑桿/快拆式，輸送改性塑料，用于粉體下料，尺寸DN350.

        《掃二維碼-添加 陳經理 微信-咨詢滑桿式旋轉閥》

　　Food grade rotary feeding valve (quick detachable and easy to clean rotary valve), size DN200. material contact part made of edible grade SUS304. variable frequency motor, dust explosion-proof, material name: maltitol, particulate matter, 40 ℃, material moisture content<1%, material particle size 10 mesh, bulk density (g/cm 3) 0.8.

　　Material conveying: granular edible salt, conveying capacity 5T/h, sliding rod quick release type, material 304 stainless steel, flange standard GB, SEW reducer; Positive pressure wind power transmission is used; Delivery design pressure: 50Kpa.

　　Sliding rod cleaning type rotary discharge valve (pull rod quick release), equipped with a power of 1.5KW, material of 304. speed of 24r/min, volume of 4.8L per revolution, conveying capacity of 1600kg/h, equipped with SEW reducer, sealing method of gas seal, motor and reducer connected by gear. Meets food safety requirements (hygiene grade, no dead corners). Material medium: yeast powder, medium density 500-600kg/m3. L=340mm.

　　Lock air quick release type: conveying capacity>7.5t/h, adjustable frequency conversion, conveying material for calcium carbide dust, positive pressure (20kPa) on the feeding side (above the valve), and atmospheric pressure on the discharging side (below the valve). The lock air valve shaft seal is equipped with a nitrogen sealing device to prevent air leakage and dust leakage to the outside. The nitrogen pressure is 0.2MPa. The lock air valve should be a quick release structure to facilitate opening the side cover and removing the rotor valve plate for cleaning when clamping materials internally; The electric motor and reducer adopt direct transmission, and the reducer and valve shaft adopt direct transmission; The voltage of the motor is 380V, and the explosion-proof rating must meet ExdIICT4 and ExdIIIBT130 ℃, with a protection level of IP55. insulation level of F, and second level energy efficiency.
